Table Structure

This is a DDL editor with a grid in front of it. Rename a column, add an index, change a key, and what you get is a pending ALTER TABLE you can read before it runs; the table on the server is untouched until you apply it. Open a table and switch the result view to Structure, or right-click it in the sidebar and choose Show Structure. The tabs are Columns, Indexes, Foreign Keys, Constraints, Triggers, DDL, and Parts (ClickHouse only); the first five carry item counts. A tab the engine has no concept of is hidden: ClickHouse has no Foreign Keys, Redshift no Triggers, Redis no Constraints. Every grid has a filter field, and clicking a header sorts.

​

Columns tab

Columns are edited in place. Nullable, Primary Key, and Auto Inc are YES/NO dropdowns; Primary Key set to YES forces Nullable to NO and holds it there until the key comes back off. Type opens a picker of the engine’s types by category: search to filter, or type a parametric value such as VARCHAR(255) and press Return to use it as written. On PostgreSQL and PGlite the picker opens with a User-Defined group of the database’s enums, composites, domains and ranges, each listed schema-qualified as sales.status. See User-Defined Types. Which remaining columns appear is the driver’s choice. Comment is there on most engines and writes the column comment. MySQL and MariaDB add Charset, Collation, and On Update; On Update set to YES on a TIMESTAMP or DATETIME column adds ON UPDATE CURRENT_TIMESTAMP at that column’s own precision, so TIMESTAMP(6) gets ON UPDATE CURRENT_TIMESTAMP(6).

​

Generated columns

PostgreSQL, CockroachDB, PGlite, MySQL, MariaDB and SQLite add two more fields. Generated is a menu of Not generated, STORED and VIRTUAL; Expression holds the SQL the value is computed from. Set both on a new row and the column is created as GENERATED ALWAYS AS (expression). The keyword is always written out. PostgreSQL 17 and earlier accept STORED only, PostgreSQL 18 made VIRTUAL the default, and MySQL and MariaDB default to VIRTUAL, so leaving it implicit would mean different columns on different servers. Two limits apply to a column that already exists. Switching Generated on it is refused by every engine: drop the column and add it back to make it generated, which discards its data. On SQLite, a column added to a populated table is VIRTUAL; ALTER TABLE refuses cannot add a STORED column there, so STORED is reachable only when the table is created. Add a column with + at the right of the status bar or Cmd+Shift+N. Select rows and click - or press Delete to mark them for removal. Flag Primary Key on one column, or several for a composite key in one PRIMARY KEY (col1, col2) clause. On an existing table that becomes a drop of the old constraint followed by an add. Drag a column row to reorder it, or right-click one and choose Move Column Up or Move Column Down. Both are dimmed with the reason spelled out under them while unsaved changes exist, while the list is filtered or sorted, on a view, and on an engine that cannot change column order. What the drag does depends on the engine: Everything that runs goes to query history rather than the change queue.

​

Indexes tab

​

Foreign keys tab

Right-click a foreign key and choose Open [table] to jump to the referenced table. Right-click any row in these three grids for Copy (the cell under the pointer), Copy Name, Copy Definition, Copy As (CSV, JSON, SQL), Duplicate, and Delete (Delete). A row already marked for deletion offers Undo Delete. The same menu appears whether or not the row was already selected, and its row commands act on the whole selection.

​

Constraints tab

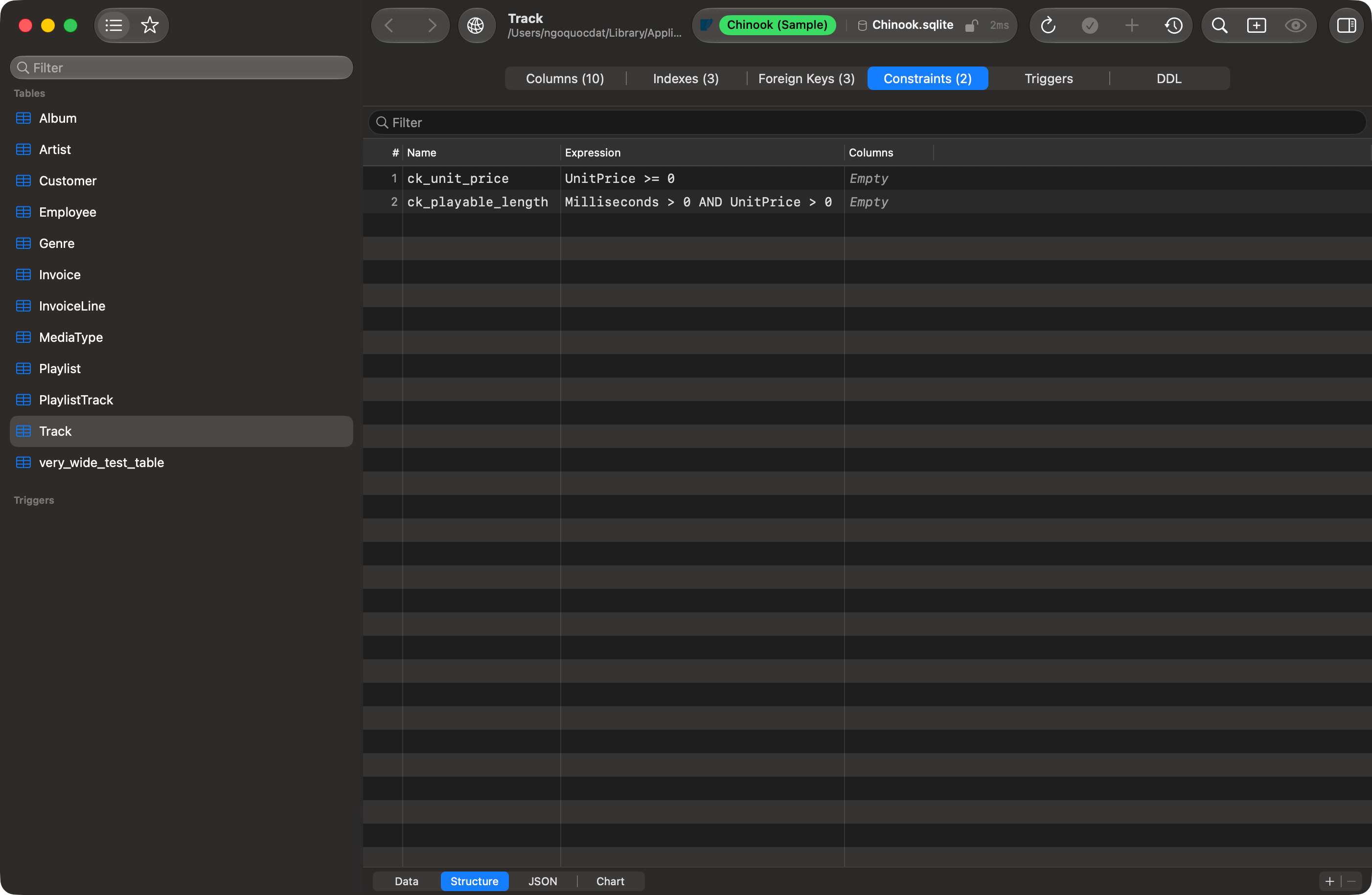

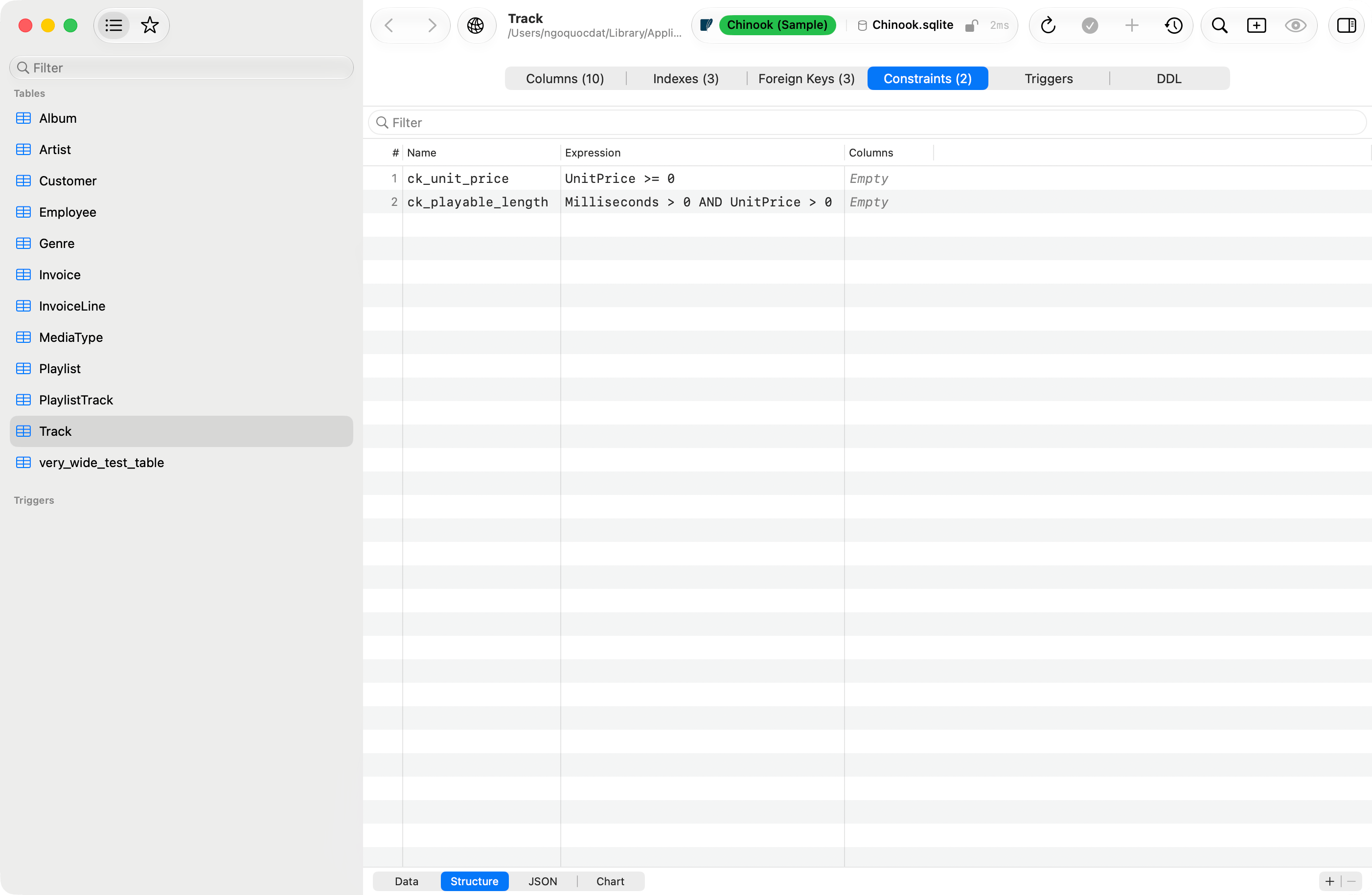

Check constraints are table-level, so a rule spanning two columns is one row here rather than something hidden on a column. Columns is filled from the catalog on PostgreSQL and SQL Server. MySQL, MariaDB and SQLite publish no such catalog, so the cell stays empty there. Renaming a constraint runs a single RENAME CONSTRAINT where the engine has one. Changing the expression drops and re-adds it, because no engine can alter a check in place. Both the re-add and a brand-new constraint scan every existing row and fail if any row violates the rule, so a failed save means the data disagrees with the constraint. The tab is hidden on engines with no check constraints. SQL Server lists and edits them, but has computed columns rather than generated ones, so it gets this tab and not the two column fields. SQLite is the one engine where listing and editing part company. The tab appears on every version, but + and - need SQLite 3.53.0 or later, the release that added ADD CONSTRAINT and DROP CONSTRAINT to ALTER TABLE. The driver links the system SQLite, so the version is the one macOS ships. On an older one the constraints still list, read-only.

​

Saving changes

Nothing here reaches the server on its own. queue on the tab, the toolbar counts them, Preview SQL (Cmd+Shift+P) shows the statements they will produce, and Cmd+S runs them. Change Tracking covers the queue, undo (Cmd+Z) and redo (Cmd+Shift+Z). A save runs on the tab’s own connection, database, and schema, the ones it was opened on, and never moves the sidebar or the toolbar.

• Save Changes (Cmd+S or the toolbar checkmark) applies the queue. Changes that can lose data, dropping a column, changing a type, adding NOT NULL, changing the primary key, first show a confirmation listing each one.
• Preview SQL (Cmd+Shift+P) shows the generated statements without executing them.

The queue outlives everything short of an explicit discard: closing the tab, closing the window, quitting, and Refresh all ask first. A save that never reaches the server leaves the tab open with its queue intact. A save runs on a connection of its own, so it never joins a transaction you have left open in a query tab.

​

When one statement fails

A save is often several statements, run in order. Engines with transactional DDL roll the whole set back; MySQL, MariaDB, and Oracle commit each one as it runs, so everything before the failure has landed while the queue still holds all of it. An Error Applying Changes sheet reports what the server said: refresh before saving again, or the second save replays work the server already did.

​

Triggers tab

Lists Name, Timing (BEFORE, AFTER, INSTEAD OF), Event (INSERT, UPDATE, DELETE), and Enabled where the engine reports it. Select one to read its CREATE TRIGGER statement from the catalog, with Copy and Open in Editor. New Trigger, Edit, and Delete sit in the action bar; the editor opens the trigger’s real DDL, including the trigger function on PostgreSQL. Trigger changes run on their own connection, like a structure save.

​

DDL tab

Read-only CREATE TABLE with syntax highlighting and font size controls. Copy, Export as a .sql file, and Open in Editor send it onward. On PostgreSQL the CREATE SEQUENCE and CREATE TYPE … AS ENUM statements the table depends on are prepended, so the script runs on an empty database.

​

Parts tab (ClickHouse)

Lists partitions and parts from system.parts. Optimize merges parts; Drop Partition and Detach Partition act on the selected partition. Detached data stays on disk and is unreadable until it is re-attached.

​

Creating a new table

Choose Database > New Table…, or right-click empty space in the sidebar and choose New Table…. The tab holds a Table Name field (with Engine, Charset, and Collation pickers on MySQL and MariaDB), the same three editing grids, and a SQL Preview tab carrying the live CREATE TABLE. Create Table (Cmd+Enter or Cmd+S) executes it and opens the new table.

​

MongoDB collections

MongoDB structure is read-only, and inferred from the collection’s first 200 documents: top-level field names are unioned across the sample, and each field takes its most common BSON type. _id comes first, marked as the primary key. The DDL tab shows indexes as createIndex() commands for mongosh, plus the validator and capped-collection options where present.

​

Limitations

• Changing a primary key on an existing table works on MySQL, MariaDB, PostgreSQL, PGlite, SQL Server, DuckDB, Snowflake, and Dameng. Elsewhere the dropdown accepts the edit and the save produces nothing for it: rebuild the table by hand.
• Check constraints and generated columns have no field in the grid. Both show in the DDL tab; change them by running DDL yourself.
• SQLite: a column can be added, dropped, and renamed. No other column change generates SQL.
• Cassandra / ScyllaDB: add and drop column only, no index editing, no visual table creation.
• Redshift, CockroachDB, BigQuery, Elasticsearch, Typesense, SurrealDB, Beancount: structure is read-only.
• Redis, etcd, DynamoDB: no table schema to edit.

​

Refreshing

Database > Refresh (Cmd+R) or the toolbar refresh button reloads structure from the server; changes made through TablePro refresh on their own. A refresh reads the tab’s own database and schema, not the sidebar’s current selection.
